Forest mulcher
Forest mulcher
Purpose & Features

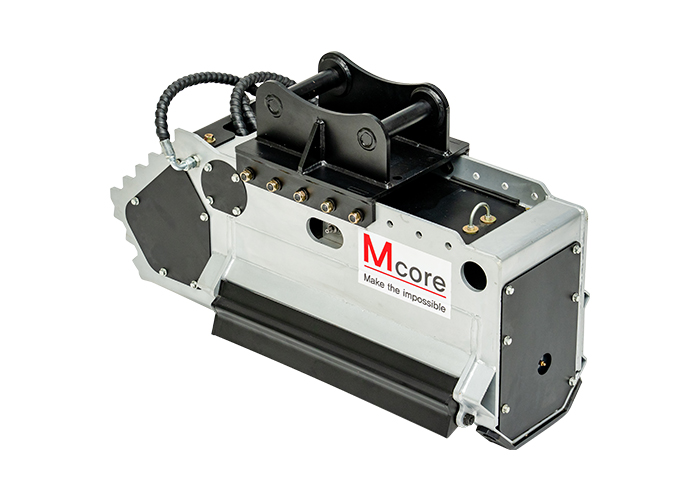

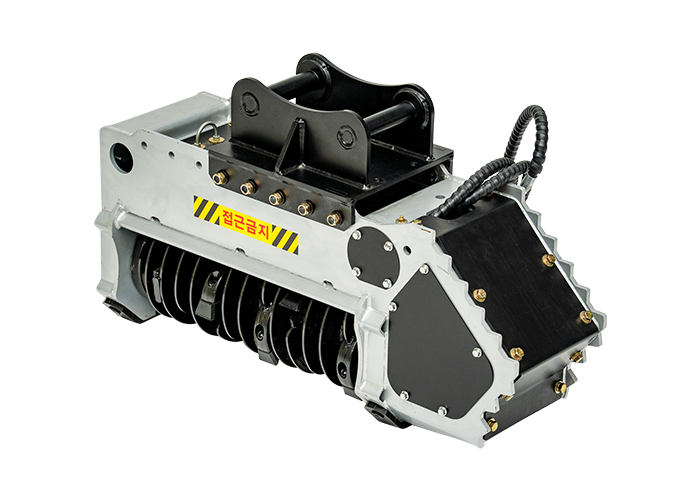

The excavator-mounted forest mulcher is a specialized implement designed for safe and efficient mowing and shredding in various work environments, including roads, orchards, farmland, mountains, and parks.
Engineered to adapt to diverse terrains such as flatlands, slopes, and uneven surfaces, it features a compact and durable structure, ensuring precision operation with minimal maintenance.
By completely shredding tree, it eliminates the need for additional collection, transportation, or disposal, providing maximum work efficiency. The shredded plant residues help retain soil moisture, prevent erosion, regulate temperature, and reduce plant diseases, maximizing environmentally friendly soil management benefits.
Notably, the direct-drive hydraulic motor system, which directly connects the motor to the blade shaft, eliminates unnecessary power loss while delivering outstanding performance in cutting trees up to 150 mm in diameter.
For trees larger than 150 mm in diameter, segmented shredding can be performed.
Additionally, a support bucket cover has been incorporated, allowing for easy loading, unloading, and machine movement on uneven terrain without the need for additional equipment.
- High-speed rotational balancing ensures optimal rotational stability
- Dual-bent main frame design minimizes vibration and structural damage
- High-strength bite-type blades provide exceptional cutting performance
- Bolt-secured blade housing enhances operational stability and work safety
- Self-developed hydraulic motor direct drive system optimizes work performance
- Support blade mounted on the bucket cover ensures convenient loading, unloading, and transport
- Hydraulic Front trap door allows for precise control of working speed
Product Details
-

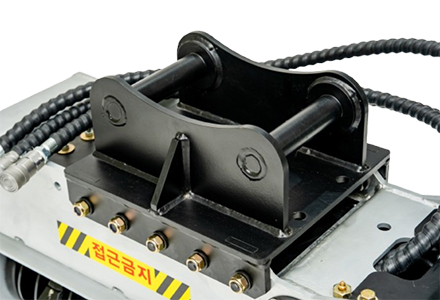

1. Custom Linkage
Compatible with various excavator types, providing perfect adaptability through customized manufacturing
-

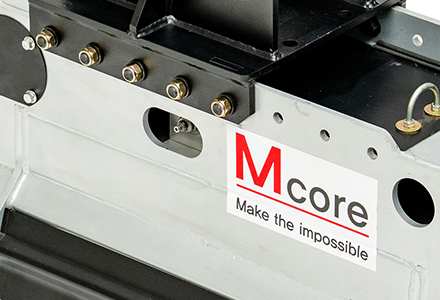

2. High-Strength Sealed Body
Made with high-performance steel and a premium paint finish for exceptional durability and corrosion resistance, featuring a sealed and dust-resistant design to enhance the longevity of key components.
-

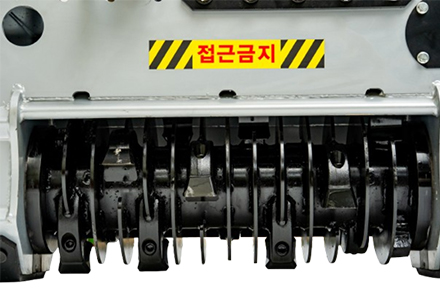

3. Bolt-Secured Blade Housing
The insert-type blade housing prevents blade detachment, enhancing operational safety
-

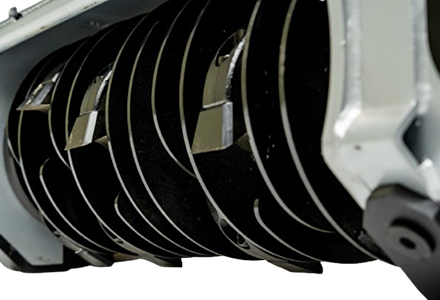

4. High-Strength Blades
Equipped with high-strength bite-type blades for superior shredding performance.
-

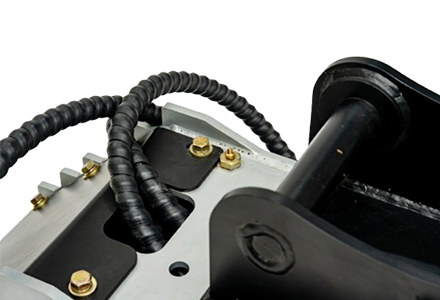

5. Easy Hydraulic Flow Adjustment
Simplifies hydraulic pressure and flow control based on excavator and machine performance
-

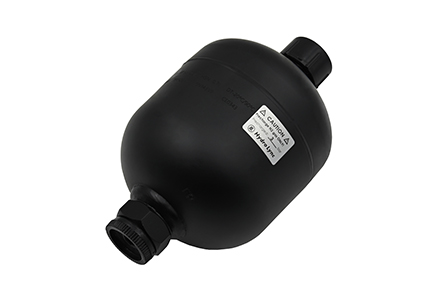

6. Nitrogen Accumulator
Relieves pressure caused by strong shocks, maximizing motor durability
-
7. Convenient Grease Injection
An optimally designed grease injection system ensures easy and efficient lubrication maintenance
Specification
| Model | - | EM-70 | EM-80 | EM-100 | EM-120 |
|---|---|---|---|---|---|
| Length(A) | mm | 430 | 620 | 630 | 640 |
| Width(B) | mm | 1,155 | 1,280 | 1,520 | 1,760 |
| Height(C) | mm | 790 | 1,080 | 1,050 | 1,050 |
| Rotor diameter | mm | 350 | 370 | 370 | 370 |
| Working width | mm | 700 | 800 | 1,000 | 1,200 |
| Shredding diameter | mm | 100 | 150 | 150 | 150 |
| Weight | kg | 320 | 460 | 660 | 860 |
| Excavator weight | ton | 3.5-6 | 5-20 | 5-20 | 5-20 |
| Drive system | - | Hydraulic Direct | V-Belt Indirect | ||
| Motor type | - | Axial piston | |||
| Motor capacity | cc | 26 | 32 | 45 | 53 |
| Maximum pressure | bar | 180-350 | 180-350 | 180-350 | 180-350 |
| Maximum flow | L/min | 45-72 | 60-100 | 60-100 | 100-135 |
| Hydraulic control circuit | - | Anti-cavitation | |||
| Type of blade | - | TYPE A | |||
| Number of blade housing | ea | 13 | 15 | 19 | 23 |

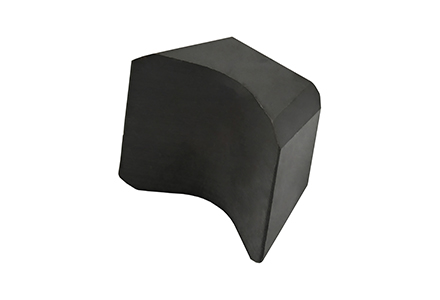

- Type of blade
-
Type A
Option
-
Hydraulic drain line installation set
-
Hydraulic quick coupler
-
Hydraulic Drain Line On-Site Installation
