Stone crusher
Stone crusher
Purpose & Feature
The tractor-mounted stone crusher is a high-performance machine designed for efficiently crushing and removing stones, rocks, and tree stumps in agriculture, forestry, construction, and road maintenance applications.
The crushed residue improves soil aeration and drainage, promoting healthy root growth, and is particularly useful in rocky areas where cultivation is challenging.
Additionally, it features high-strength fixed blades and a robust main frame, ensuring stable and reliable operation.
- High-speed rotational balancing ensures optimal rotational stability
- Dual-bent main frame design minimizes vibration and structural damage
- Enhanced durability with a sealed, dust-resistant design for keycomponents
- Efficient crushing performance with high-strength, bite-type blades arranged in a dense pattern
- Equipped with a hydraulically adjustable rear hood for controlled operation
- Compact size and weight allow versatile use in campsites, ranches, and various environments
- Semi-automatic upper-link tilting system optimizes ground surface alignment
Product Details
-

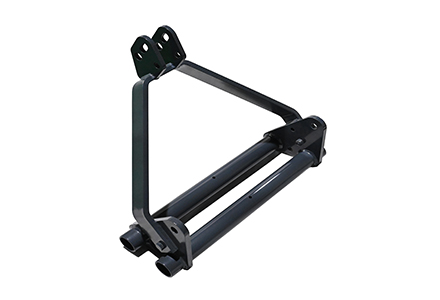

1. Three-Point Hitch System
A robust 3-point hitch system ensures stable compatibility with various tractor models
-

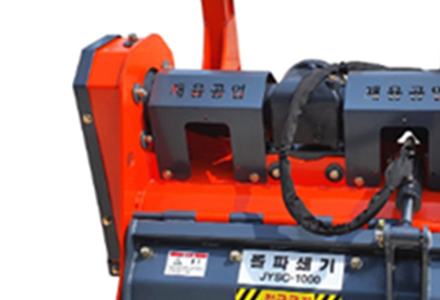

2. High-Strength Sealed Body
Made with high-performance steel and a premium paint finish for exceptional durability and corrosion resistance, featuring a sealed and dust-resistant design to enhance the longevity of key components.
-

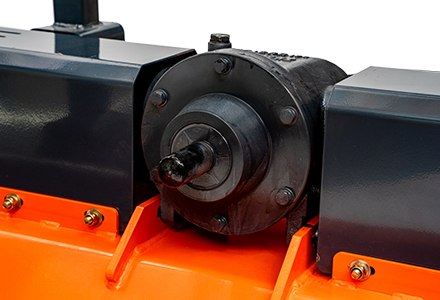

3. High-Efficiency Gearbox
An optimized gear ratio enables efficient power transmission, while enhanced safety mechanisms prevent tractor rollback when stopped
-

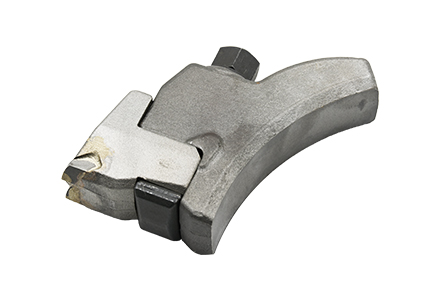

4. Fixed Blade Holder & Blades
Equipped with bolt-secured, high-strength bite-type blades (tungsten carbide, WC) on a spiral rotor for optimal cutting performance.
-

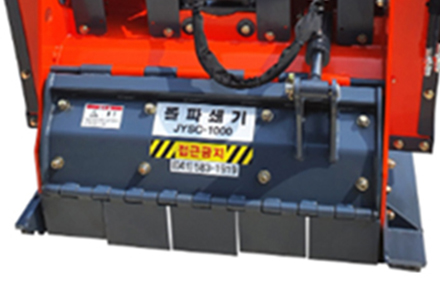

5. Rear Hood
Features an adjustable opening to prevent crushed stones from ejecting outward.
-

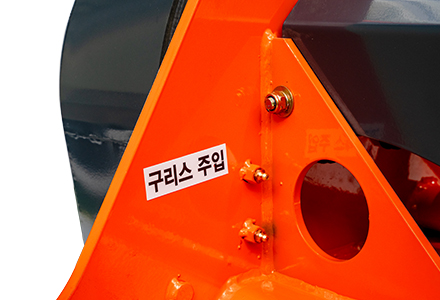

6. Convenient Grease Injection
An optimally designed grease injection system ensures easy and efficient lubrication maintenance
-

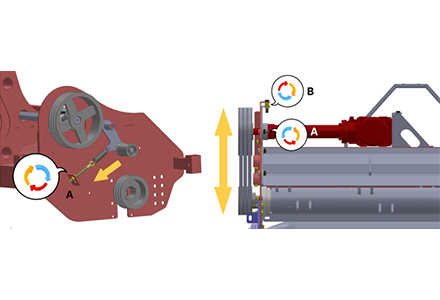

7. Easy Tension Adjustment
Enables quick and precise belt tension adjustments, preventing issues caused by overload or belt wear
Specification
| Model | - | JYSC-800 | JYSC-1000 | JYSC-1200 |
|---|---|---|---|---|
| Length(A) | mm | |||
| Width(B) | mm | 1,280 | 1,480 | 1,680 |
| Height(C) | mm | |||
| Working width(D) | mm | 800 | 1,000 | 1,200 |
| PTO power required | HP | > 60 | > 100 | > 120 |
| Type of blade | - | Bite type | ||
| Rotor diameter | mm | |||
| Number of blade | ea | |||
| Number of drive belts | ea | 6 | 6 | 6 |
| Max. shredding diameter | mm | 150 | 150 | 150 |
| Weight | kg | 700 | 1,300 | 1,600 |

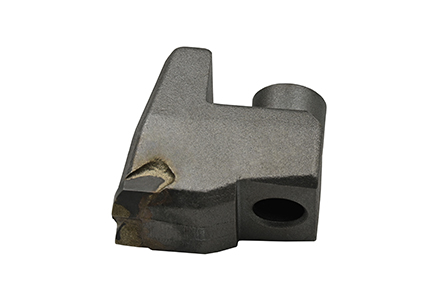

- Shredding blade
-
Bite type
