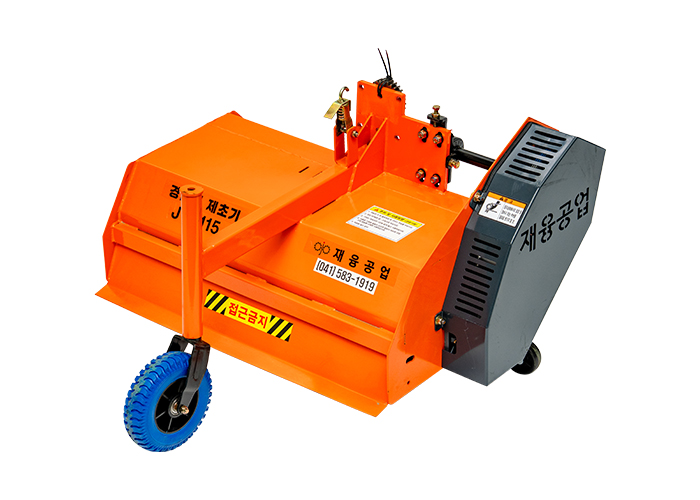

Attached mower

Purpose & Feature

Small vehicle mounted mower is designed for use with equipment that has a PTO power source or an independent power unit, making it compatible with low-ground-clearance machines such as ride on cultivators, cultivators, speed sprayers, and ATVs.
With its compact structure and one-touch attachment/detachment system, it offers easy operation and high efficiency across various work environments.
This mower is ideal for removing vines from crops such as sweet potatoes, potatoes, tomatoes, pumpkins, cucumbers, melons, and watermelons, making it a versatile solution for diverse agricultural applications.

Compatible with PTO-powered and independently powered systems, including ride on cultivators, cultivators, speed sprayers, and ATVs.
Dual-bent main frame design minimizes vibration and structural damage
Premium Italian-made blades deliver outstanding cutting performance
Bolt-secured blade housing enhances operational stability and work safety
Efficiently shreds vines, weeds, and pruned branches
Compact design allows for easy operation in confined spaces

Product Details

1. Robust Linkage

A durable linkage system ensures stable compatibility with various equipment and can be custom-made if needed
2. High-Strength Body

Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance

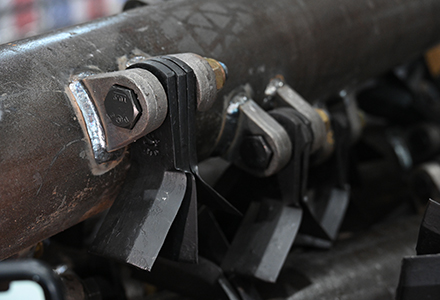

3. Spline-Type Blade Arrangement

A high-speed, balanced spline blade design ensures high efficiency, low vibration, and reduced load operation
4. Bolt-Secured Blade Housing

The insert-type blade housing prevents blade detachment, enhancing operational safety
5. High-Strength Blades

Equipped with Italian-made high-strength blades for superior cutting performance (삼중날 20파이)
6. Convenient Grease Injection

An optimally designed grease injection system ensures easy and efficient lubrication maintenance
7. Rear Hood

Prevents cut grass and debris from being ejected, ensuring operator safety
8. 간편한 텐션 조절

벨트의 과부하 및 노후화로 인한 벨트 텐션 저하 시, 손쉬운 조작으로 신속하고 정확한 텐션 조정 가능

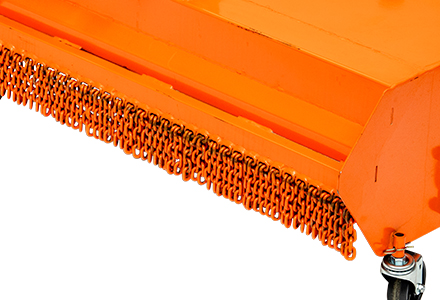

9. Chain Curtain

Prevents cut grass and debris from being ejected, enhancing work safety
10. Support wheel

Evenly distribute the load, enhancing work efficiency and stability

Specification

- Ride on cultivator

Model	-	SJ-1200R	JY-1400
Length(A)	mm	955	955
Width(B)	mm	1,430	1,650
Height(C)	mm	930	930
Working width(D)	mm	1,200	1,400
PTO power required	HP	18	18
Type of blade	-	Double / Triple / Hammer
Size of blade	φ (phi)	Fit all size(compact, medium, mid-large, large)
Number of blade housing	ea	4	4
Number of drive belts	mm	300	-
Weight	kg	272	260

- Speed sprayer, ATV

Model	-	HalfMower-1200	HalfMower-1400
Length(A)	mm	990	990
Width(B)	mm	1,400	1,620
Height(C)	mm	945	945
Working width(D)	mm	1,100	1,400
PTO power required	HP	gasoline 13/22	gasoline 18
Type of blade	-	Double / Triple / Hammer
Size of blade	φ (phi)	Fit all size(compact, medium, mid-large, large)
Number of drive belts	ea	4	4
Weight	kg	272	260

- for Cultivator

Model	-	JY-800-3	JY-115
Length(A)	mm	1,000
Width(B)	mm	1,000
Height(C)	mm	770
Working width(D)	mm	800	1,200
PTO power required	HP	8-10	8-10
Type of blade	-	Double / Triple / Hammer
Size of blade	φ (phi)	Fit all size(compact, medium, mid-large, large)
Number of drive belts	ea	3	3
Weight	kg	134	-
