Sweet potato implement(harvester)
Sweet potato implement(harvester)
Purpose & Feature

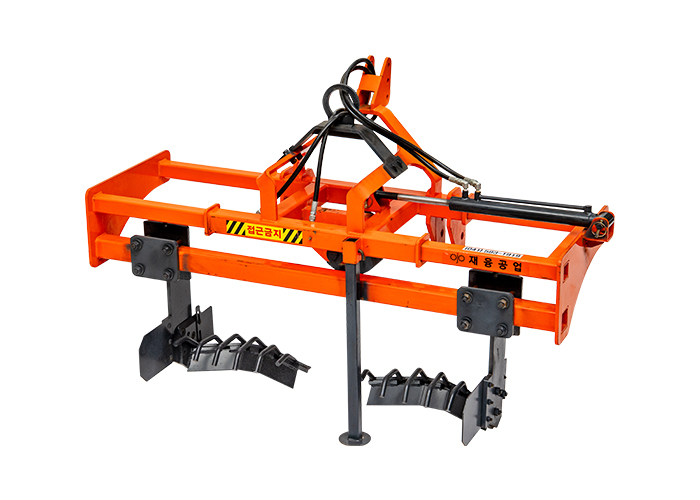

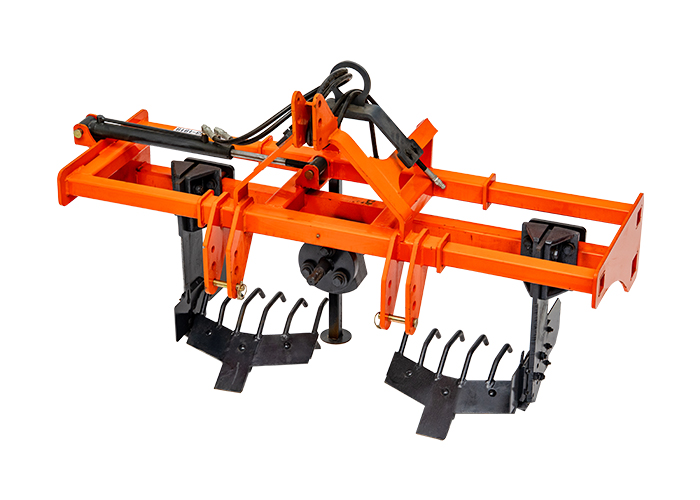

The tractor-mounted sweet potato harvester is a specialized machine designed for efficient harvesting after vine removal.
It minimizes skin damage, allowing for clean and intact sweet potato collection.
The harvesting depth and speed can be precisely adjusted based on soil conditions, ensuring an optimal working environment.
Available in two-row and four-row models, the machine can also be adapted into a subsoiler by changing specific parts, making it versatile for various agricultural tasks.
- Equipped with high-strength subsoil blades for exceptional durability
- Design for Minimal Crop Damage prevents skin damage during sweet potato harvesting
- Suitable for harvesting a variety of crops, including potatoes, garlic, and more
- Easily converts into a subsoil crusher by replacing the harvesting blade with a subsoil blade
Product Details
-

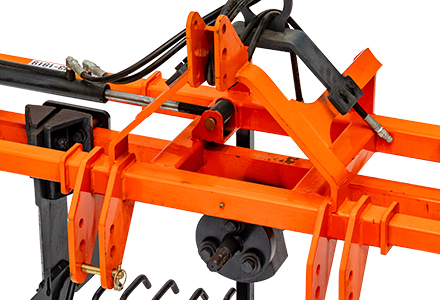

1. Three-Point Hitch System
A robust 3-point hitch system ensures stable compatibility with various tractor models
-

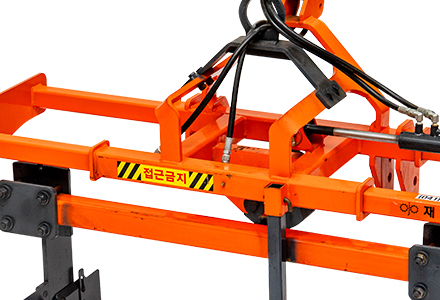

2. High-Strength Body
Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance
-

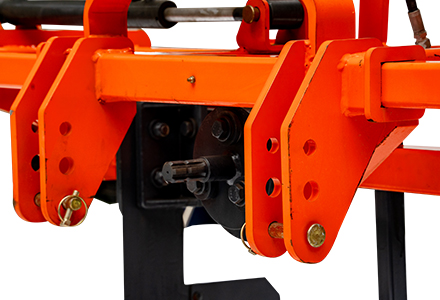

3. High-Efficiency Gearbox
An optimized gear ratio enables efficient power transmission, while enhanced safety mechanisms prevent tractor rollback when stopped
-
4. Side Shift
Provides a side-shift function that allows movement up to 500 mm
-

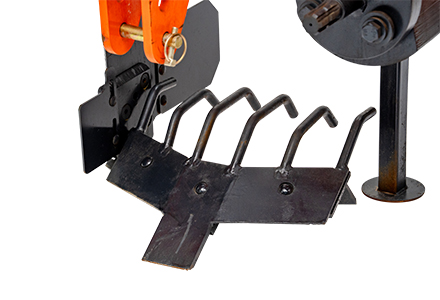

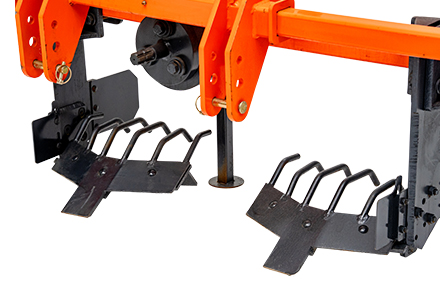

5. High-Strength Harvesting Blades
Equipped with bolt-fastened, high-strength harvesting blades for superior durability
Specification
| Model | - | GS46-2 | GS46-4 |
|---|---|---|---|
| Length(A) | mm | 790 | 820 |
| Width(B) | mm | 1,709 | 2,402 |
| Height(C) | mm | 1,165 | 1,165 |
| Working width(D) | mm | 460 x 2 | 460 x 4 |
| Number of furrow | mm | 2 | 4 |
| PTO power required | HP | ||
| Type of blade | - | Harvesting blade | |
| Weight | kg | 320 | 550 |
- Type of blade
-
Harvesting blade
