Subsoil crusher
Subsoil crusher
Purpose & Feature
The tractor-mounted subsoil crusher is designed to improve hardened soil conditions in rice fields, farmlands, orchards, and general land, optimizing the cultivation environment.
Subsoil crushing enhances soil drainage and aeration, increasing moisture retention and effective soil depth while effectively reducing crop salt stress.
By breaking up compacted layers, it allows water and nutrients to penetrate deeper, promoting healthier crop growth.
As an essential tool for mechanized agriculture, this equipment plays a crucial role in improving soil quality and increasing crop productivity.
- Equipped with high-strength subsoil blades for exceptional durability
- Left-right oscillating vibration design effectively removes stones and ensures smooth operation
- Suitable for cultivating taproot crops such as greenhouse vegetables, peppers, leafy greens, apples, pears, and burdock
- Can be adapted for harvesting crops like garlic, potatoes, and sweet potatoes by replacing the subsoil blades
Product Details
-

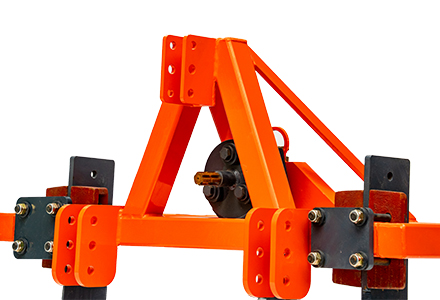

1. Three-Point Hitch System
A robust 3-point hitch system ensures stable compatibility with various tractor models
-

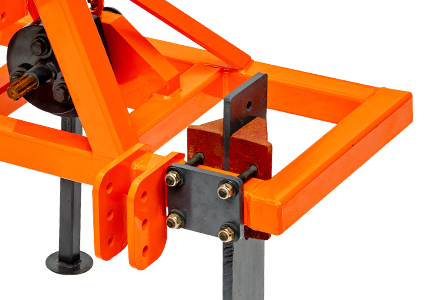

2. High-Strength Body
Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance
-

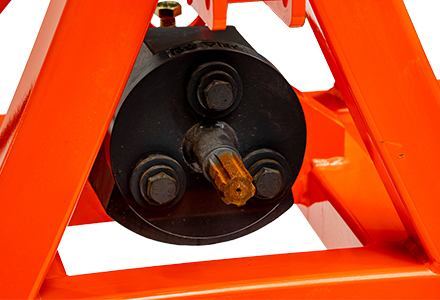

3. High-Efficiency Gearbox
Optimized gear ratio enables efficient power transmission, while enhanced safety mechanisms prevent tractor rollback when stopped
-

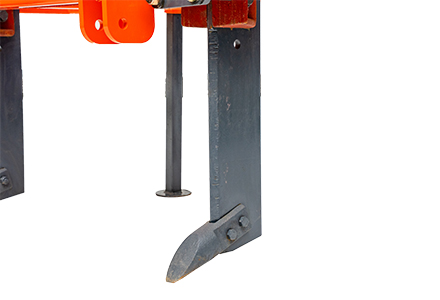

4. High-Strength Subsoil Blades
Equipped with bolt-fastened, high-strength subsoil blades for superior durability
Specification
| Model | - | WJ-1 | WJ-2 | WJ-3 |
|---|---|---|---|---|
| Length(A) | mm | 790 | ||
| Width(B) | mm | 1,880 | ||
| Height(C) | mm | 1,165 | ||
| Working width(D) | mm | 80-100 | 120-160 | 180-220 |
| Working depth | mm | 800 | 800 | 800 |
| PTO power required | HP | 25-50 | 38-50 | 40-100 |
| Type of blade | - | subsoil blade | ||
| Number of furrow | - | 1 | 2 | 3 |
| Weight | kg | 320 | ||
- Type of blade
-
subsoil blade
