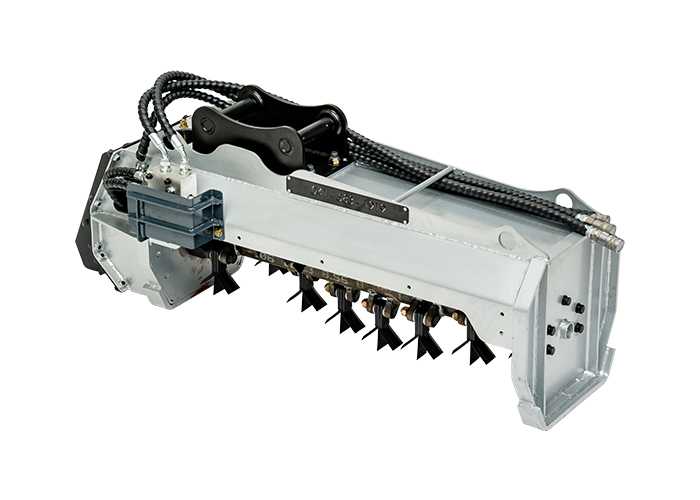

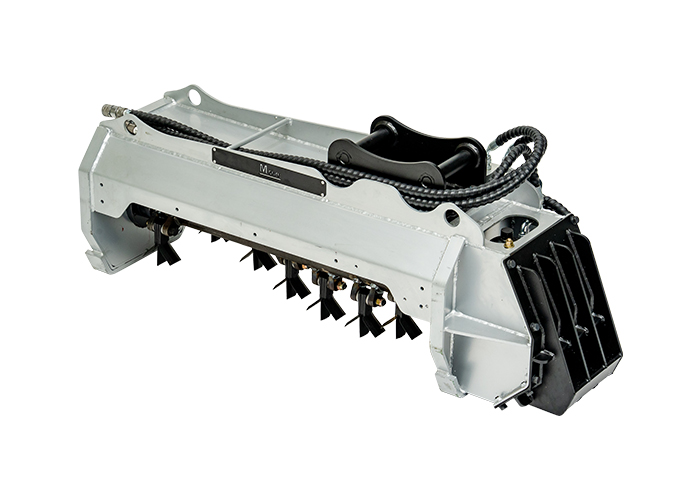

General flail mower

Purpose & Feature

The excavator-mounted general mower is a specialized implement designed for safe and efficient weed control in various work environments, including roads, orchards, farmland, mountains, and parks. Engineered to adapt to diverse terrains such as flatlands, slopes, and uneven surfaces, it features a compact and durable structure, ensuring precision operation with minimal maintenance.
By completely shredding vegetation, it eliminates the need for additional collection, transportation, or disposal, offering over five times the efficiency of manual weeding.
The shredded plant residues help retain soil moisture, prevent erosion, regulate temperature, and reduce plant diseases, maximizing environmentally friendly soil management benefits.

Notably, the direct-drive hydraulic motor system, which directly connects the motor to the blade shaft, eliminates unnecessary power loss while delivering a high-speed rotation of up to 5,000 rpm, allowing it to effectively cut through tough weeds and even shrubs up to 30 mm in diameter.
Additionally, a support bucket cover has been incorporated, enabling easy loading, unloading, and machine movement on uneven terrain without requiring additional equipment.

High-speed rotational balancing ensures optimal rotational stability
Dual-bent main frame design minimizes vibration and structural damage
Bolt-secured blade housing enhances operational stability and work safety
High-strength Italian blade with spline-type arrangement maximizes cutting efficiency
Combination of L-shaped and straight blades optimize cutting efficiency
Self-developed hydraulic motor direct drive system optimizes work performance
Support blade mounted on the bucket cover ensures convenient loading, unloading, and transport

Product Details

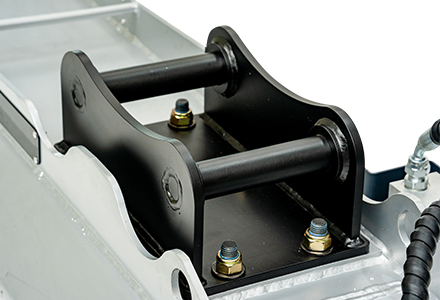

1. Custom Link

Compatible with various excavator types, providing perfect adaptability through customized manufacturing
2. High-Strength Body

Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance

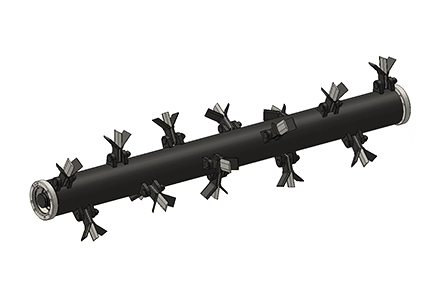

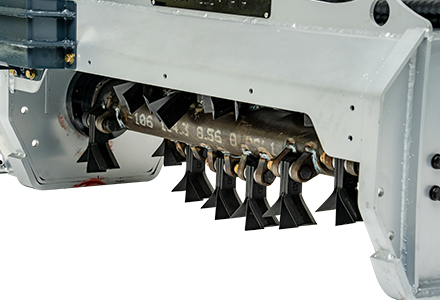

3. Spline-Type Blade Arrangement

A high-speed, balanced spline blade design ensures high efficiency, low vibration, and reduced load operation

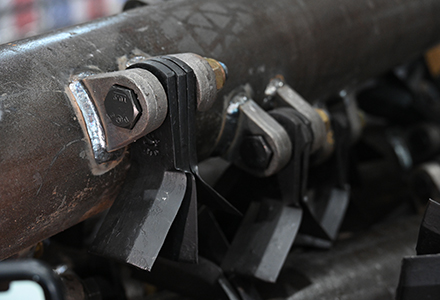

4. Bolt-Secured Blade Housing

The insert-type blade housing prevents blade detachment, enhancing operational safety

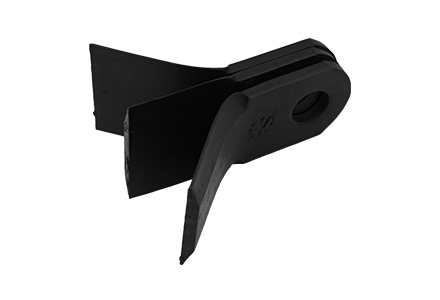

5. High-Strength Blades

Equipped with Italian-made high-strength blades for superior cutting performance
6. Easy Hydraulic Flow Adjustment

Simplifies hydraulic pressure and flow control based on excavator and machine performance

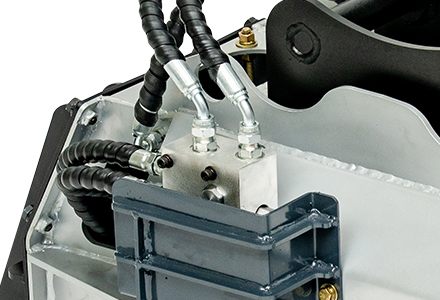

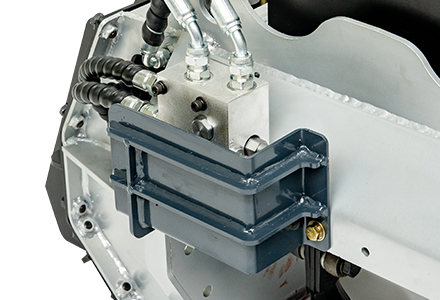

7. Hydraulic-Block Cover

Protects the hydraulic-block from impacts that may occur during operation

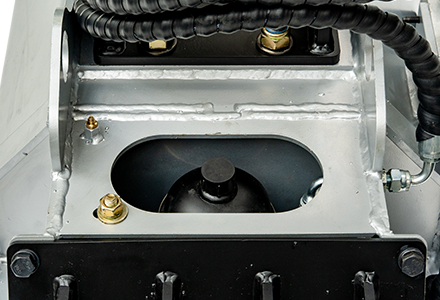

8. Nitrogen Accumulator

Relieves pressure caused by strong shocks, maximizing motor durability

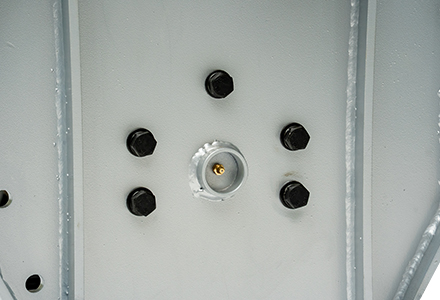

9. Convenient Grease Injection

An optimally designed grease injection system ensures easy and efficient lubrication maintenance

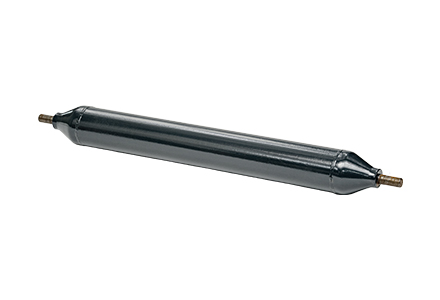

10. Geometry Roller

Maintains a stable center of gravity, maximizing mower performance while optimizing ground contact; features an adjustable roller height

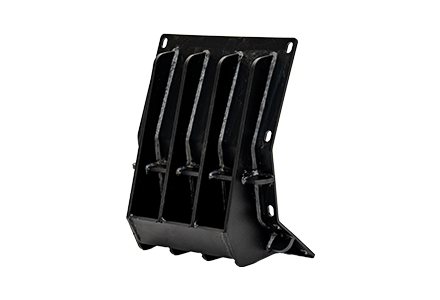

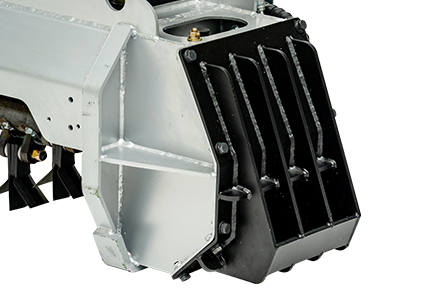

11. Bucket Cover

Equipped with a support blade to support loading, unloading, and machine movement

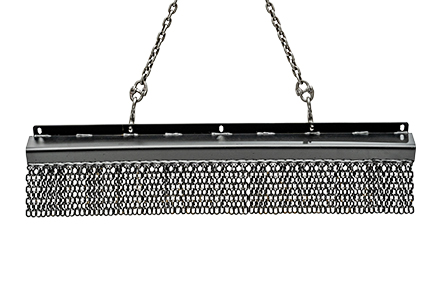

12. Chain Curtain

Prevents cut grass and debris from being ejected, enhancing work safety

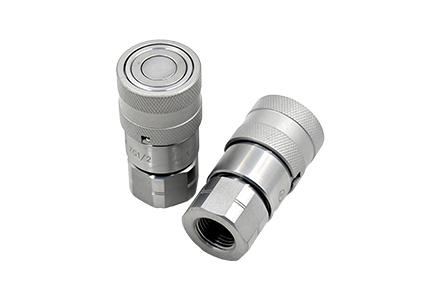

13. One-Touch Connector

Hydraulic one-touch connector allows for quick and easy attachment to the excavator

Specification

Model	-	WJ-70	WJ-90	WJ-115	WJ-150
Length(A)	mm	400	550	605	630
Width(B)	mm	1040	1290	1622	1940
Height(C)	mm	520	651	620	630
Working width(D)	mm	700	900	1100	1500
Weight	kg	110	210	280	550
Excavator weight	ton	1.7-2.5	3.0-3.5	5.0-8.0	14-20
Motor type	-	gear		Axial piston
Motor capacity	cc	4	8	10	32
Max. pressure	bar	310	310	310	310
Max. Flow	L/min	20	35	45	140
Max. rpm	rpm	3500	3500	4500	3500
Hydraulic control circuit	-	Anti-cavitation
Drain pressure	bar	15	15	50	30
Type of blade	-	D	D	D/T/H	D/T/H
Size of blade hole	mm	20	20	20	20
No. blades	ea	10	11	13	17
