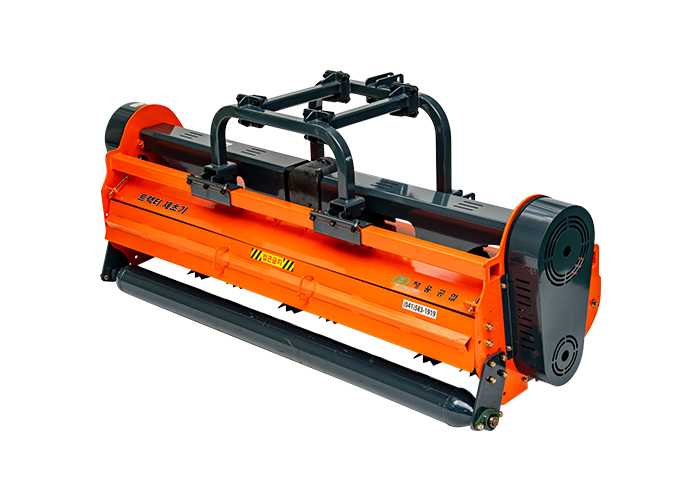

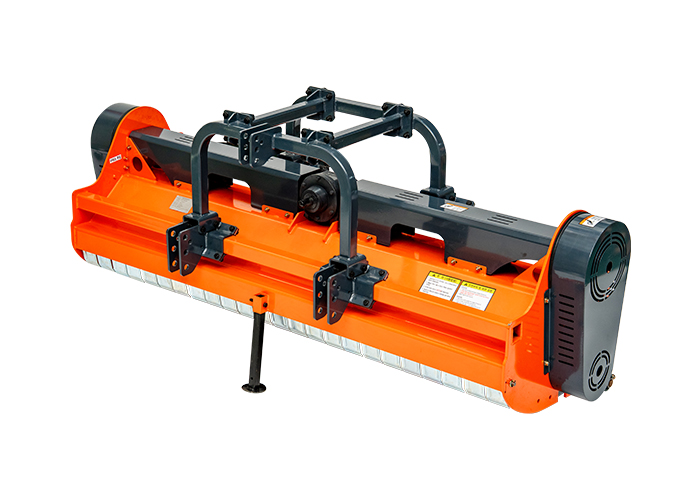

General flail mower

General flail mowers

Purpose & Feature

The tractor-mounted general flail moweris designed for efficient removal of weeds and branches over large areas with high cutting performance and a wide working width.
Its broad mowing capability maximizes land utilization, enabling rapid clearance of extensive areas with minimal labor.
Systematic weed management optimizes crop growth conditions, reduces pest and disease outbreaks, and protects the soil surface, preventing erosion while enhancing moisture retention.
Additionally, this mower contributes to improving the aesthetics of large green spaces and establishing firebreaks for wildfire prevention, making it suitable for various land management applications.

High-speed rotational balancing ensures optimal rotational stability
Dual-bent main frame design minimizes vibration and structural damage
Bolt-secured blade housingenhances operational stability and work safety
Spline-type knife arrangementmaximizes cutting efficiency
Excellent for managinglarge-scale green spaces
Semi-automatic upper-link tilting systemoptimizes ground surface alignment

Product Details

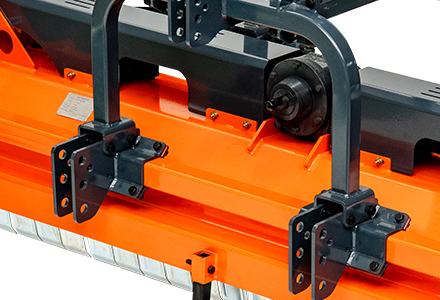

1. Three-Point Hitch System

A robust 3-point hitch system ensures stable compatibility with various tractor models

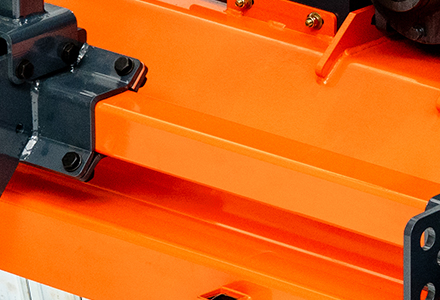

2. High-Strength Body

Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance

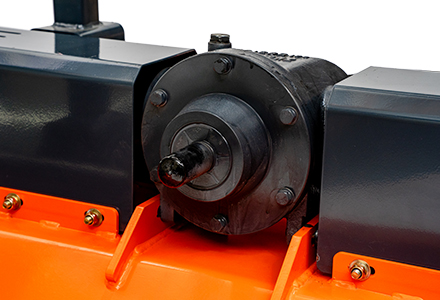

3. High-Efficiency Gearbox

An optimized gear ratio enables efficient power transmission, while enhanced safety mechanisms prevent tractor rollback when stopped

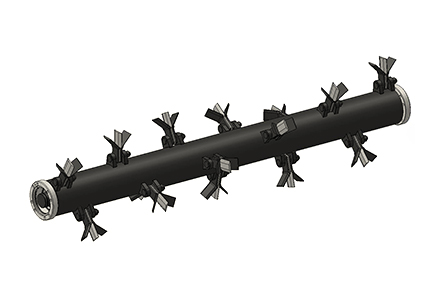

4. Spline-Type Blade Arrangement

A high-speed, balanced spline blade design ensures high efficiency, low vibration, and reduced load operation

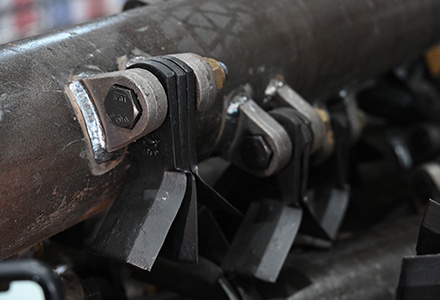

5. Bolt-Secured Blade Housing

The insert-type blade housing prevents blade detachment, enhancing operational safety

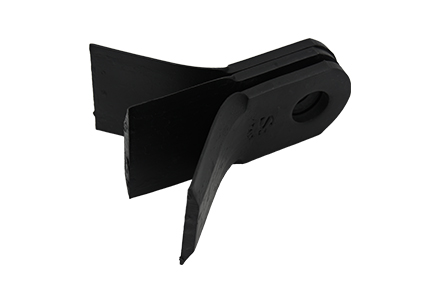

6. High-Strength blades

Equipped with Italian-made high-strength blades for superior cutting performance

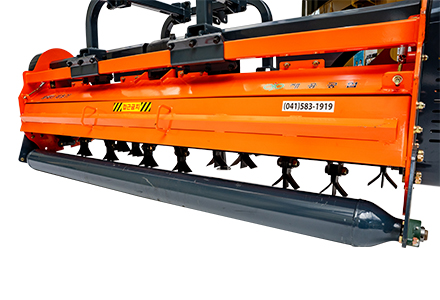

7. Geometry Roller

Maintains a stable center of gravity, maximizing mower performance while optimizing ground contact; features an adjustable roller height

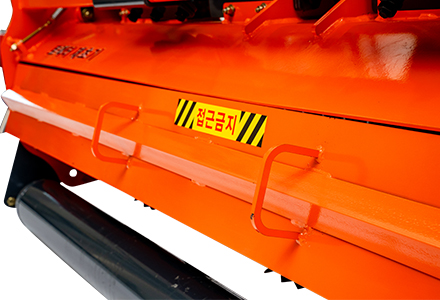

8. Rear Hood

Prevents cut grass and debris from being ejected, ensuring operator safety

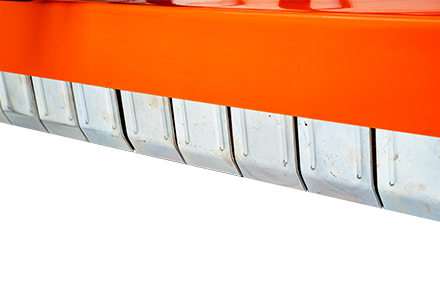

9. Front Skirt

Blocks cut grass and debris from entering the machine, protecting internal components and improving the working environment

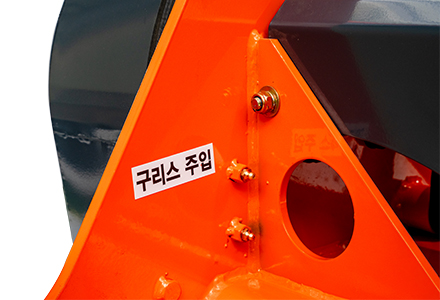

10. Convenient Grease Injection

An Optimally designed grease injection system ensures easy and efficient lubrication maintenance

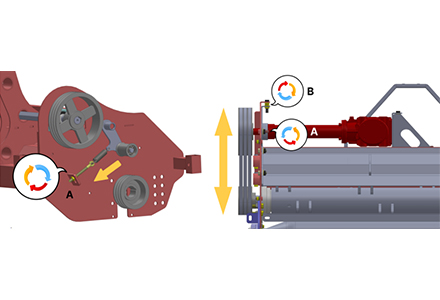

11. Easy Tension Adjustment

Enables quick and precise belt tension adjustments, preventing issues caused by overload or belt wear

Specification

Model	-	JY-1200	JY-1500	JY-1800	JY-2100	JY-2300	JY-2500
Length(A)	mm	955	955	960	1,110	1,110	1,110
Width(B)	mm	1,430	1,730	2,065	2,400	2,600	2,800
Height(C)	mm	930	930	955	1,170	1,170	1,170
Working width(D)	mm	1,200	1,500	1,800	2,100	2,300	2,500
PTO power required	HP	13-28	30-55	30-55	50-70	70-100	70-100
Type of blade1	-	Double / Triple / Hammer
Size of blade	mm	Fit all size(compact, medium, mid-large, large)
Number of drive belts	ea	4	4	4	6	6	6
Weight	kg	285	320	375	410	550	750
