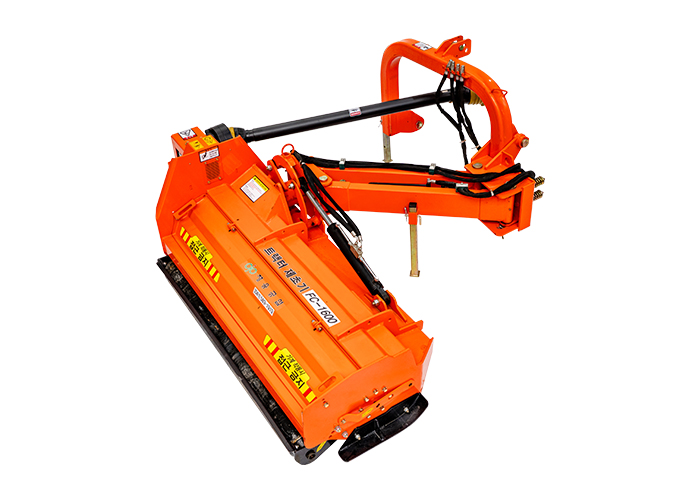

Verge flail mower

Purpose & Feature

The tractor-mounted verge flail mower is designed for efficient removal of weeds and branches over large areas with high cutting performance and a wide working width.
Its broad mowing capability maximizes land utilization, enabling rapid clearance of extensive areas with minimal labor.

Systematic weed management optimizes crop growth conditions, reduces pest and disease outbreaks, and protects the soil surface, preventing erosion while enhancing moisture retention.
Additionally, this mower contributes to improving the aesthetics of large green spaces and establishing firebreaks for wildfire prevention, making it suitable for various land management applications.
In particular, it allows a single operator to manage large areas quickly and efficiently, maximizing work productivity and enhancing labor efficiency.

High-speed rotational balancing ensures optimal rotational stability
Dual-bent main frame design minimizes vibration and structural damage
Supports 45° slope operation and a maximum bending angle offset of 121°
Bolt-secured knife housing enhances operational stability and work safety
Spline-type knife arrangement maximizes cutting efficiency
The gearbox protrudes externally, allowing for a wider travel distance of machine and efficient operation
Applicable to various terrains such as bicycle paths, farm roads, riversides, guardrails, and other steep areas

Product Details

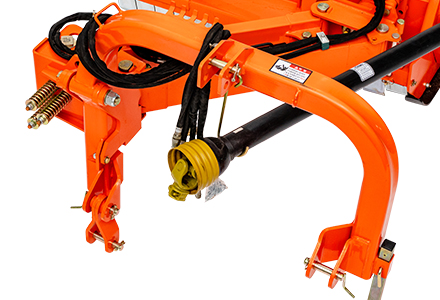

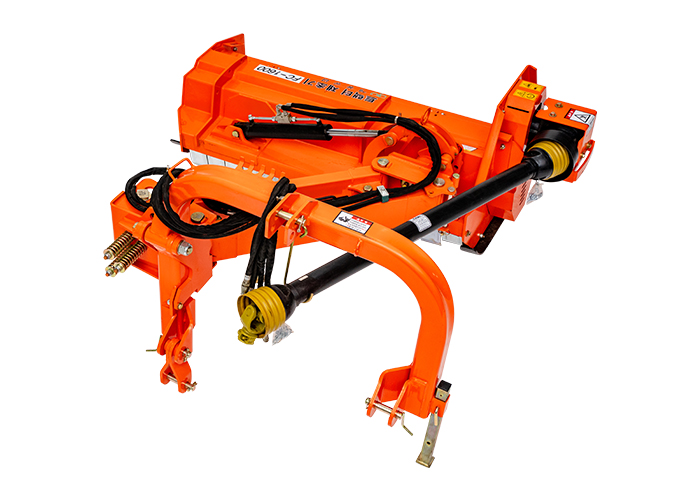

1. Three-Point Hitch System

A robust 3-point hitch system ensures stable compatibility with various tractor models

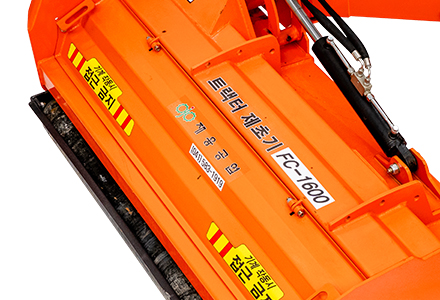

2. High-Strength Body

Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance

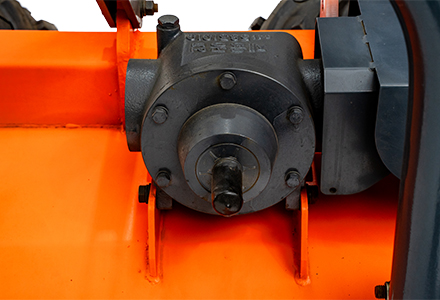

3. High-Efficiency Gearbox

An optimized gear ratio enables efficient power transmission, while enhanced safety mechanisms prevent tractor rollback when stopped

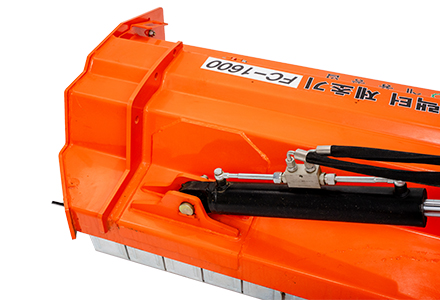

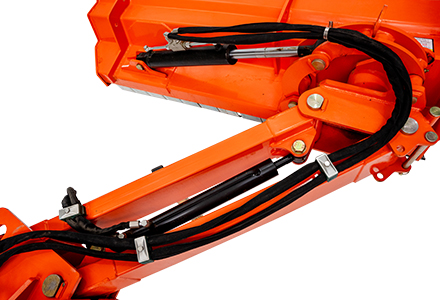

4. Offset Function

Supports 45° slope operation and a maximum bending angle of 140° using a hydraulic system

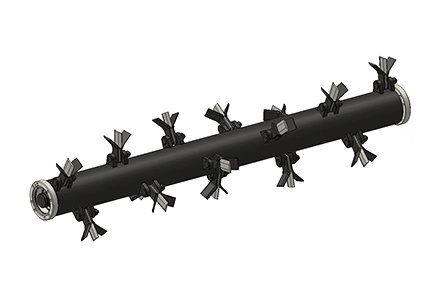

5. Spline-Type Blade Arrangement

A high-speed, balanced spline blade design ensures high efficiency, low vibration, and reduced load operation

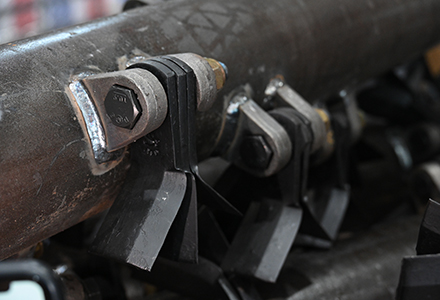

6. Bolt-Secured Blade Housing

The insert-type blade housing prevents blade detachment, enhancing operational safety

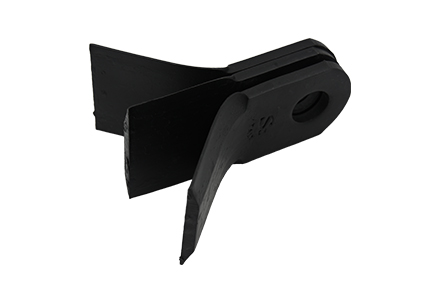

7. High-Strength blades

Equipped with Italian-made high-strength blades for superior cutting performance

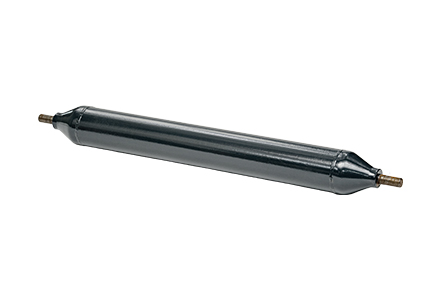

8. Geometry Roller

Maintains a stable center of gravity, maximizing mower performance while optimizing ground contact; features an adjustable roller height
9. Rear Cover

Prevents cut grass and debris from being ejected, ensuring operator safety

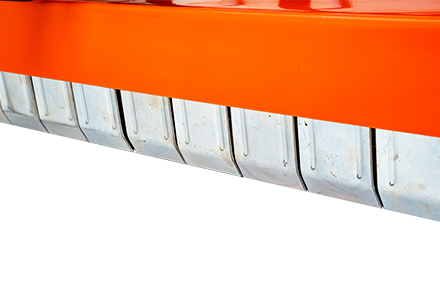

10. Front Skirt

Blocks cut grass and debris from entering the machine, protecting internal components and improving the working environment

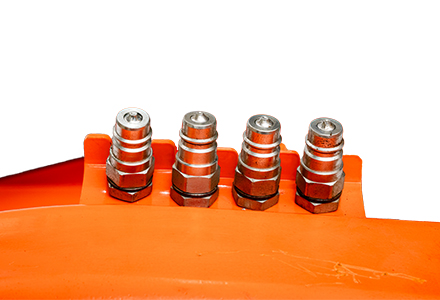

11. Hydraulic Coupler Bracket

Prevents hose damage, reduces interference, and simplifies maintenance and attachment
12. Universal Joint Hook

Prevents joint damage, reduces interference, and simplifies maintenance and attachment

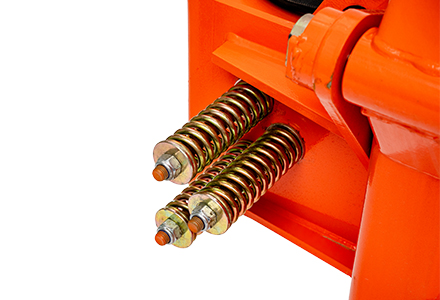

13. Damping spring

Absorbs shocks when the arm is folded or extended to prevent equipment damage, while providing smooth operation and return force

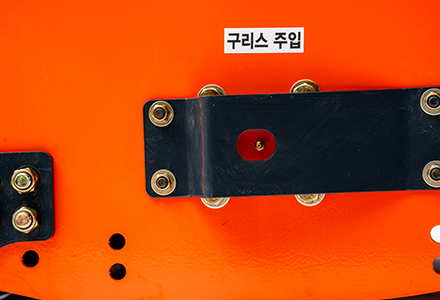

14. Convenient Grease Injection

An Optimally designed grease injection system ensures easy and efficient lubrication maintenance

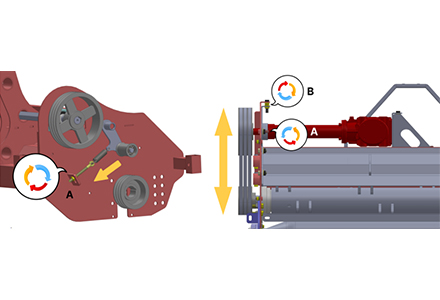

15. Easy Tension Adjustment

Enables quick and precise belt tension adjustments, preventing issues caused by overload or belt wear

Specification

Model	-	FC-1400	FC-1500	FC-1600
Length(A)	mm	1,710	1,783	2,050
Width(B)	mm	1,623	1,948	2,080
Height(C)	mm	941	1,159	1,085
Working width(D)	mm	1,380	1,480	1,500
PTO power required	HP	> 35	> 55	> 60
Type of blade	-	Double / Triple / Hammer
Size of blade	mm	Fit all size(compact, medium, mid-large, large)
Number of drive belts	ea	4	4	4
Tilt up/down	°	90/50	90/50	90/50
Weight	kg	319	439	775
