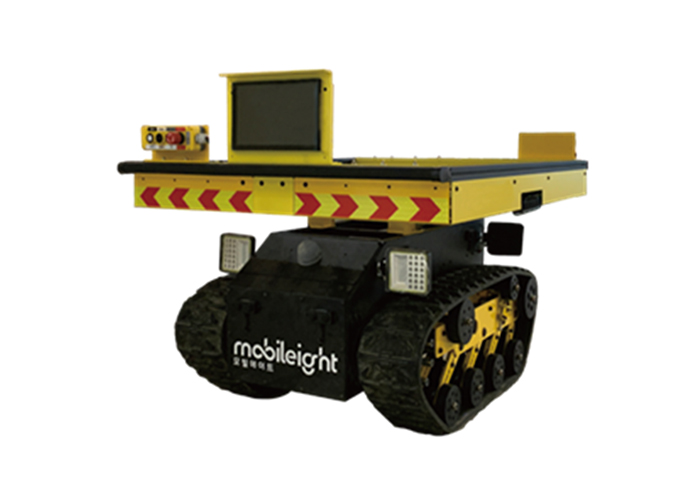

Autonomous transporter
Autonomous transporter
Purpose & Feature
The autonomous transport vehicle is an innovative solution designed to automatically transport crops and materials, maximizing agricultural efficiency while reducing labor costs.
Equipped with vision AI-based autonomous driving technology, it follows designated routes without operator intervention, ensuring seamless and efficient operations.
Featuring individually suspended track wheels, it can safely transport loads of up to 300 kg at a speed of 4 km/h without damaging crops such as peaches and grapes.
Additionally, multiple driving modes—including frequency-following, autonomous navigation, and remote control operation—allow for flexible adaptation to various environments.
This makes it an ideal solution for smart farms, orchards, livestock farms, campgrounds, resorts, and other industries requiring efficient material transport.
- Supports multiple driving modes: autonomous driving, frequency-following, and remote-controlled operation
- Enables cultivation site mapping using 3D cameras and LiDAR sensors
- Ensures operational safety with ultrasonic sensor detection
- Maximum load capacity of 300 kg, maximum climbing angle of 13°, and top speed of 4 km/h
- Up to 4 hours of continuous operation with a swappable battery system
- Equipped with a lift function reaching up to 2 meters in height
Product Details
-
1. Three Driving Modes
Efficient operation with multiple driving modes, including autonomous driving, frequency-following, and remote-controlled operation.
-
2. Cultivation Site Mapping
Precise work path planning and efficient task management using 3D cameras and LiDAR sensors.
-
3. Ultrasonic Sensors
Provides a safe working environment by detecting obstacles and preventing collisions.
-
4. Swappable Battery System
Supports up to 4 hours of continuous operation with an efficient battery replacement system.
-
5. Lift
Optimized for various work environments, featuring a lift with a maximum height of 2 meters.
-
6. User Interface
Intuitive device control via a touchscreen display.
-
7. Emergency Stop
Equipped with an emergency stop button to prevent accidents.
-
8. Safety Bumpers
Front and rear bumpers to enhance safety and prevent collisions.
-
9. LED Lights
Enables nighttime operation with integrated LED lighting.
-
10. Wide-Angle Camera
Ensures efficient and stable performance with a wide-angle camera.
Specification
| Model | - | ILRO-2 |
|---|---|---|
| Length(A) | mm | 1,160 |
| Width(B) | mm | 880 |
| Height(C) | mm | 670 |
| Weight | kg | 180 |
| Carry capacity | kg | 300 |
| Towing payload | kg | 1,000 |
| Battery | - | Lithium-ion 48V, 30Ah |
| Battery charge time | h | 4 (swappable) |
| People following | - | 3D vision camera |
| Teach & Repeat | - | 3D vision camera + Lidar |
| Tires | - | Rubber track |
| Max speed | km/h | 4 |
| Incline | ° | 15 |
| Bumper bars | - | Front-Rear |
| Lighting | - | Front-Rear LED light / safety are laser |
Option
-
lift
-
Wheel type tires
