Purpose & Feature

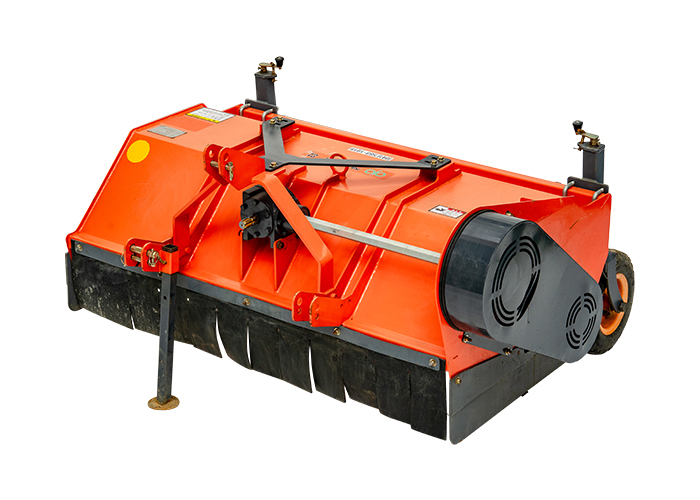

The tractor-mounted sweet potato vine crusher is a specialized machine designed to maximize the efficiency of root crop harvesting.
It effectively shreds vines before harvest and removes weeds between ridge, ensuring smooth operation. Fallen vines can also be lifted and precisely shredded without damaging the crops, enabling clean and efficient work. The machine features specially designed blades optimized for furrow size, and users can choose between two-row and four-row models depending on their working environment.
- High-speed rotational balancing ensures optimal rotation stability
- Dual-bent main frame design minimizes vibration and structural damage
- Bolt-secured knife housing enhances operational stability and work safety
- Spline-type knife arrangement maximizes cutting efficiency
- Furrow-optimized blade arrangement enables effective vine shredding and weed removal
- Available in two-row and four-row models
Product Details
-

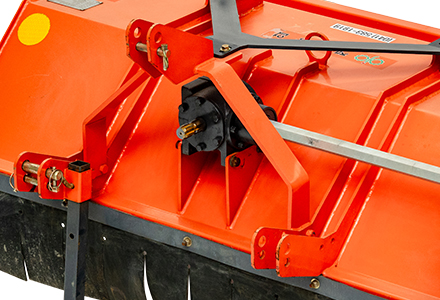

1. Three-Point Hitch System
A robust 3-point hitch system ensures stable compatibility with various tractor models
-

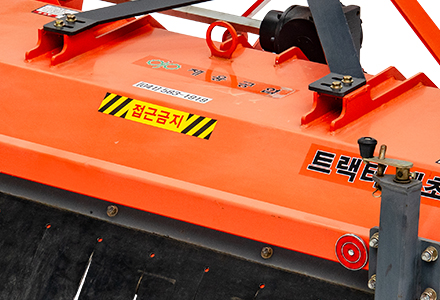

2. High-Strength Body
Made from high-performance steel with a premium paint finish, offering superior durability and corrosion resistance
-

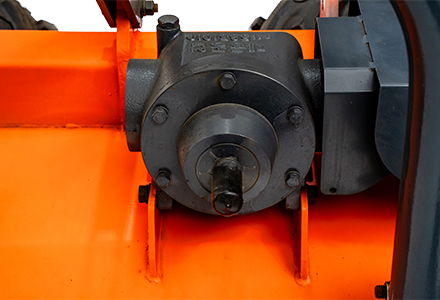

3. High-Efficiency Gearbox
An optimized gear ratio enables efficient power transmission, while enhanced safety mechanisms prevent tractor rollback when stopped
-

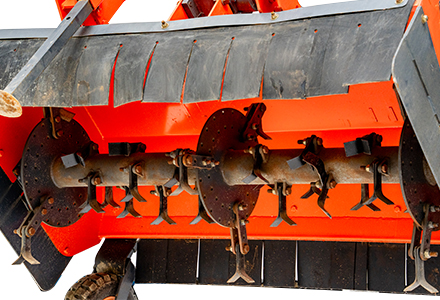

4. Customized Blade Configuration
Optimized blade arrangement for ridges and furrows to enhance shredding efficiency of stalk crops
-
5. Bolt-Secured Blade Housing
The insert-type blade housing prevents blade detachment, enhancing operational safety
-

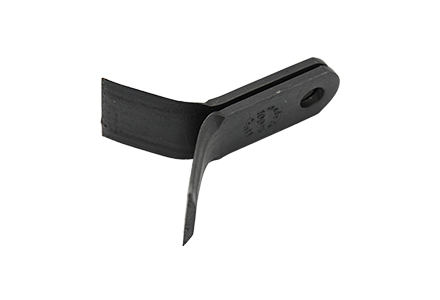

6. High-Strength Blades
Equipped with Italian-made high-strength blades for superior cutting performance (double-edged, 14mm diameter)
-

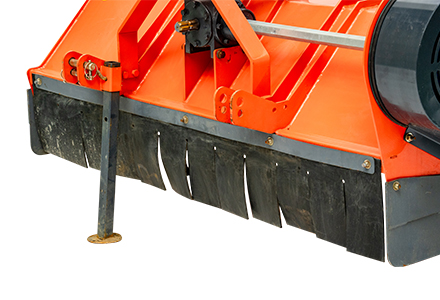

7. Front and Rear Rubber Skirts
Prevent cut grass and stones from scattering inside and outside the machine, enhancing equipment protection and operational safety
-

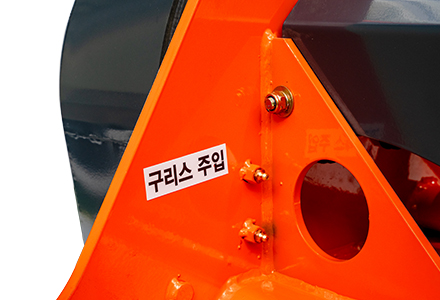

8. Convenient Grease Injection
An optimally designed grease injection system ensures easy and efficient lubrication maintenance
-

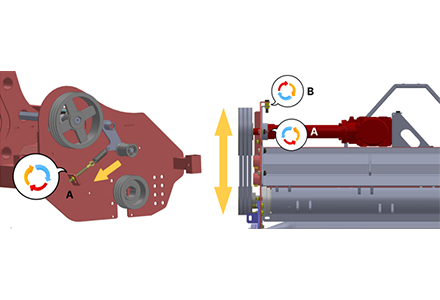

9. Easy Tension Adjustment
Enables quick and precise belt tension adjustments, preventing issues caused by overload or belt wear
-

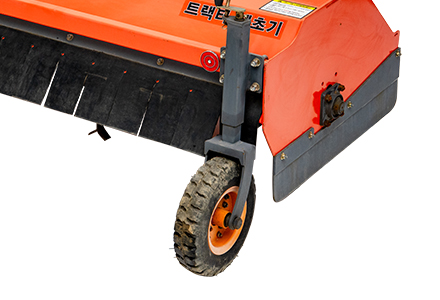

10. Suspension Wheels
Ensure stable operation even on uneven terrain
Specification
| Model | - | GS-1700 | GS-3000 |
|---|---|---|---|
| Length(A) | mm | 1,540 | 1,540 |
| Width(B) | mm | 1,940 | 3,340 |
| Height(C) | mm | 1,100 | 1,100 |
| Working width(D) | mm | 1650 | 3300 |
| Number of furrow | mm | 2 | 4 |
| PTO power required | HP | > 30 | > 40 |
| Type of blade | - | Double blade | |
| Size of blade | - | 14 | |
| Number of drive belts | ea | 3 | 6 |
| Weight | kg | 455 | 750 |
- Type of blade
-
Double blade(D)
